1 - SCHRAUBENSCHLÜSSEL FÜR FILTERMUTTER |
|
|
|
2 - VORFILTERKAPPENMUTTER |
|
|
|
3 - ABDECKUNG DES VORFILTERS |
|
|
|

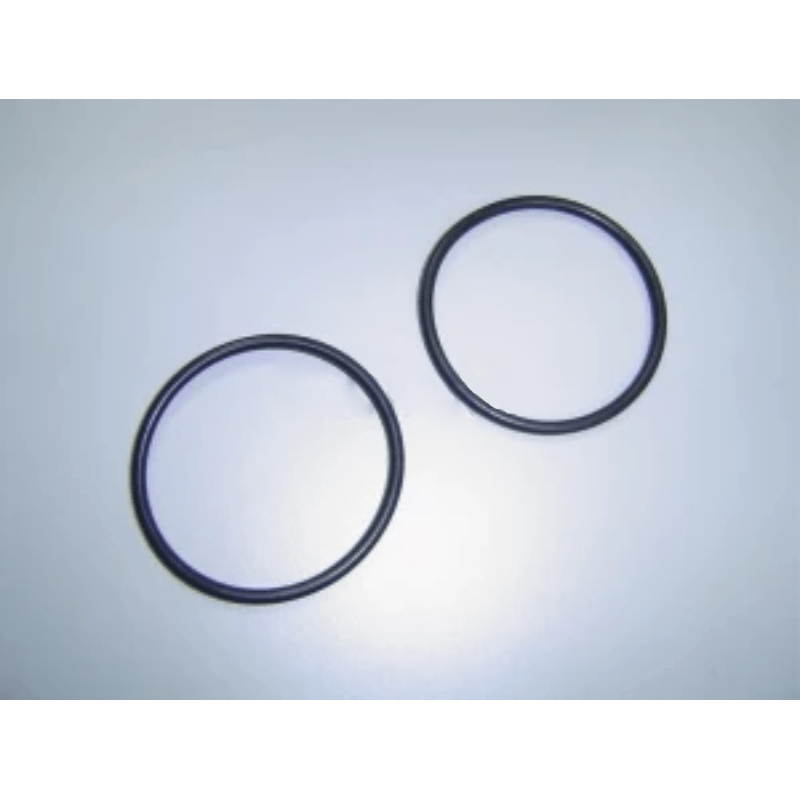

4 - JUNTA TORICA D 151,7X6,99 |
|
|
|

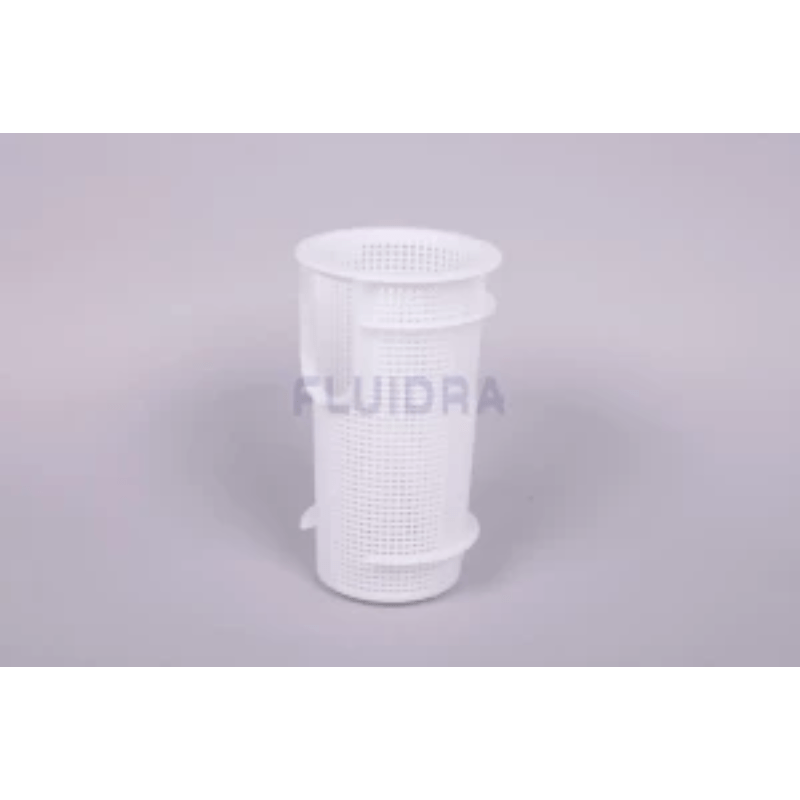

5 - VORFILTERKORB |
|
|
|
6 - TORSIONSSTANGE JUNTA D 63X4 |
|
|
|

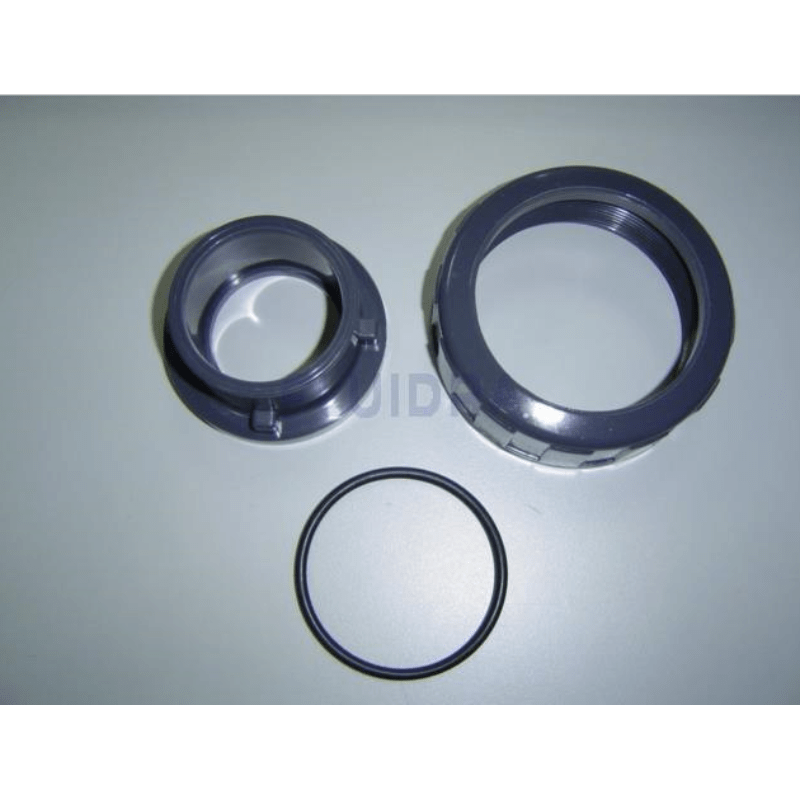

7 - D-50-VERSCHRAUBUNGSZUBEHÖR (0,5 - 1 STD) |
|
|
|
7 - UNION ZUBEHÖR D-63 (1,5 - 3 PS) |
|
|
|
8 - CORPO BOMBA |
|
|
|
9 - SPÜLSTECKER |
|
|
|
10 - FUSSPUMPE ((1/2 HP) 230 V II - (3/4 HP) 230 V II - (1 HP) 230/400 V III) |
|
|
|
10 - FUSSPUMPE ((1,5 PS) 230 V II - (1,5 PS) 230/400 V III - (2 PS) 230 V II - (2 PS) 230/400 V III - (3 PS) 230/400 V III) |
|
|
|
10 - FUSSPUMPE (3 HP) 230 V II |
|
|
|
11 - 3/4 - 1 - 1,25 PS SILENT-BLOCK |
|
|
|
11 - SILENT-BLOCK (45X13X27) |
|
|
|
11 - SILENT-BLOCK (16X45X13) |
|
|
|

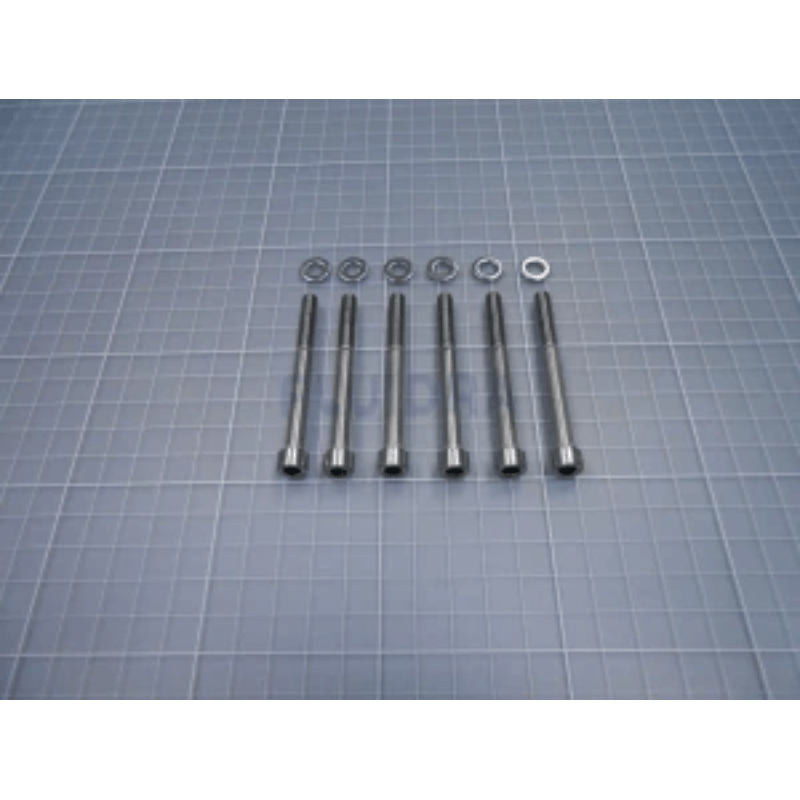

12 - SCHRAUBE M6X65 DIN 912 |
|
|
|
13 - DIFFUSOR <=0,75 HP |
|
|
|
13 - DIFFUSOR 1 HP - 2 HP |
|
|
|
13 - DIFFUSOR 2,5 - 3 PS |
|
|
|
14 - DICHTUNGEN ((1/2 HP) 230 V II - (3/4 HP) 230 V II - (1 HP) 230 V II - (1 HP) 230/400 V III - (1,5 HP) 230 V II - (1,5 HP) 230/400 V III - (2 HP) 230 V II - (2 HP) 230/400 V III) |
|
|
|
14 - DICHTUNGEN ((3 PS) 230 V II - (3 PS) 230/400 V III) |
|
|
|
15 - SOCKELLEISTE M8 ESQ. |
|
|
|

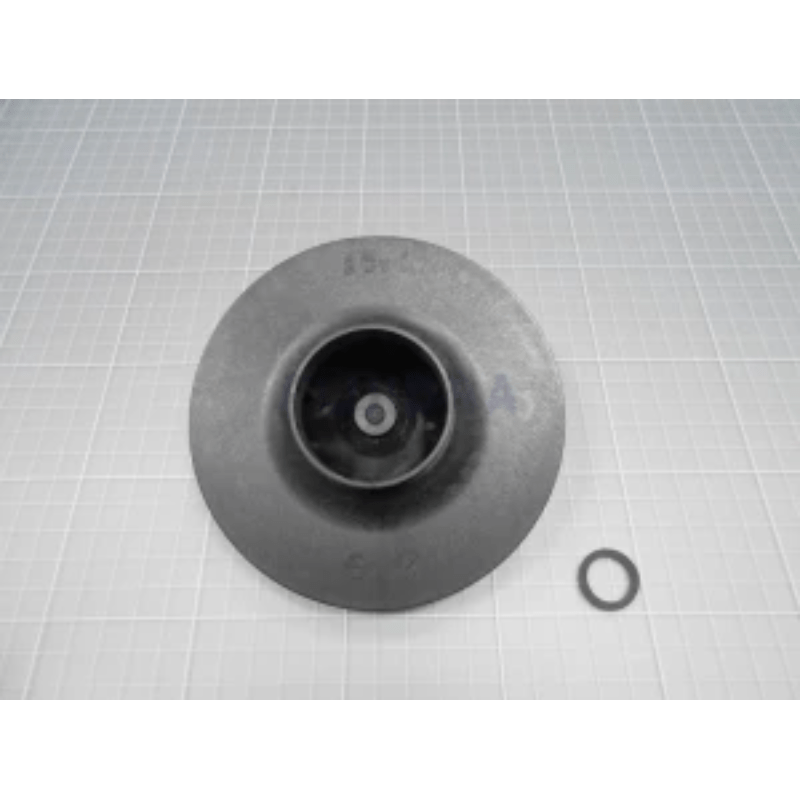

16 - CASTOR ½ (II) HP |
|
|
|
16 - CASTOR ¾ (II) HP |
|
|
|
16 - CASTOR 1 (II) HP |
|
|
|
16 -CASTOR 1 (III) HP |
|
|
|
16 - CASTOR 1,5 (II) PS |
|
|
|
16 - CASTOR 1,5 (III) PS |
|
|
|
16 - CASTOR 2 (II) CV |
|
|
|
16 - CASTOR 2 (III) HP |
|
|
|
16 - CASTOR 3 (II) HP |
|
|
|
16 - CASTOR 3 (III) HP |
|
|
|
17 - JUNTA TORICA |
|
|
|
18 - FLANSCH FÜR GLEITRINGDICHTUNG |
|
|
|
19 - JUNTA MECÂNICA |
|
|
|

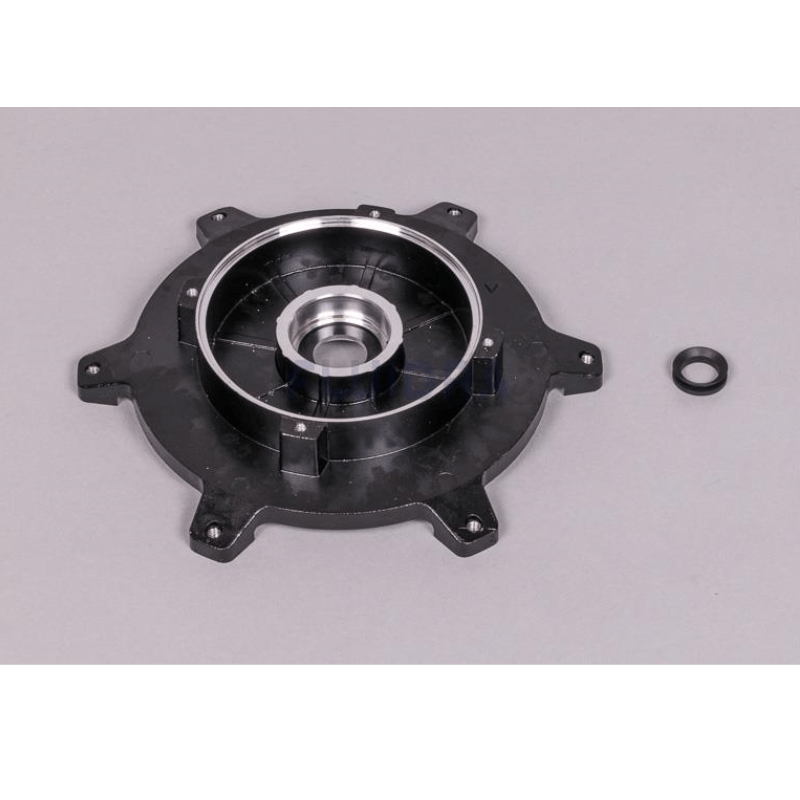

20 - VORDERER MOTORFLANSCH ((1/2 PS) 230 V II - (3/4 PS) 230 V II - (1 PS) 230/400 V III) |
|
|
|
20 - MOTORFLANSCH VORNE ((1,5 PS) 230 V II - (1,5 PS) 230/400 V III - (2 PS) 230 V II - (2 PS) 230/400 V III - (3 PS) 230/400 V III) |
|
|
|
20 - FLANSCHMOTOR DIANTEIRA (3 CV) 230 V II |
|
|
|

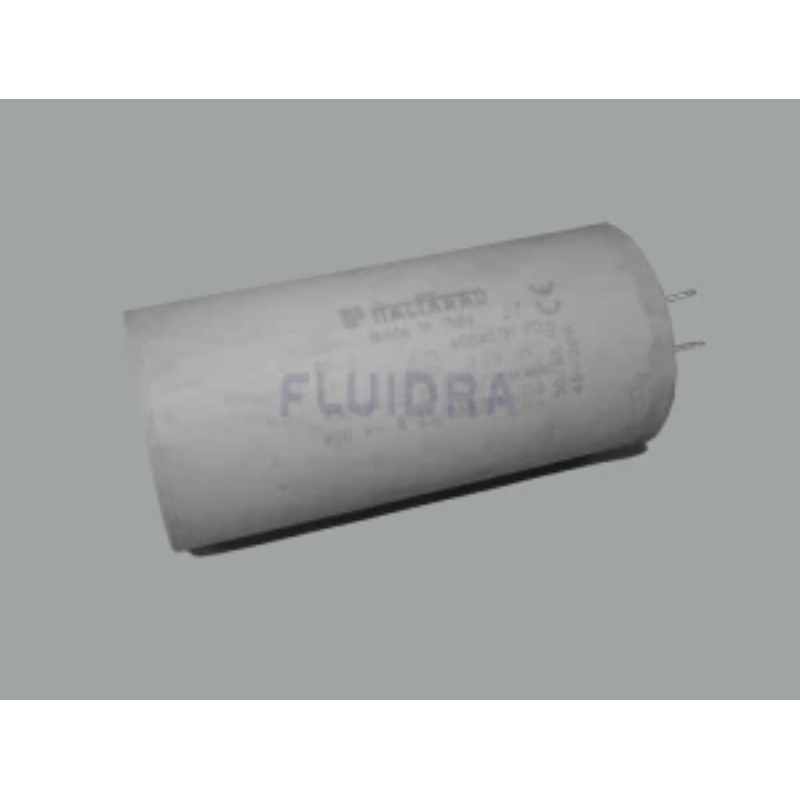

21 - KONDENSATOR 14 UF 3/4 CV |
|
|
|
21 - KONDENSATOR 16 UF 1 CV |
|
|
|
21 - KONDENSATOR 30 UF |
|
|
|
21 - KONDENSATOR 40 ?F 2,5-3 CV |
|
|
|
21 - KONDENSATOR 60 UF |
|
|
|
22 - CJTO. CAIXA TERMINAIS (MOTOR II) C.71 |
|
|
|
22 - CJTO. CAIXA TERMINAIS (MOTOR III) C.71 |
|
|
|
22 - CJTO. CAIXA TERMINAIS (MOTOR III) C.80- |
|
|
|
22 - CAIXA TERMINAIS (MOTOR III) C.80 |
|
|
|

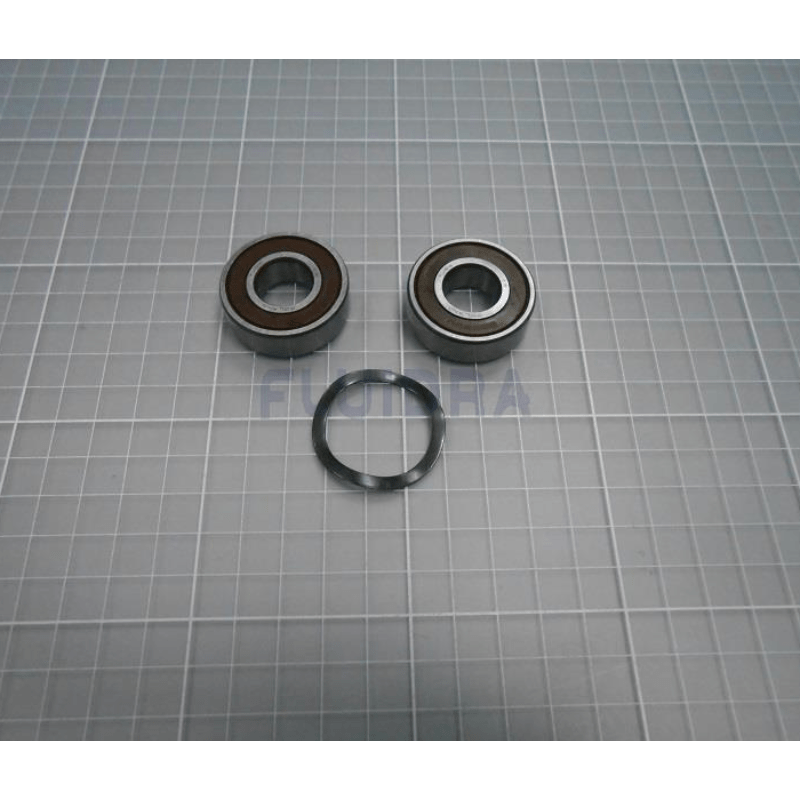

23 - ROLAMENTO MOTOR < 1 HP |
|
|
|

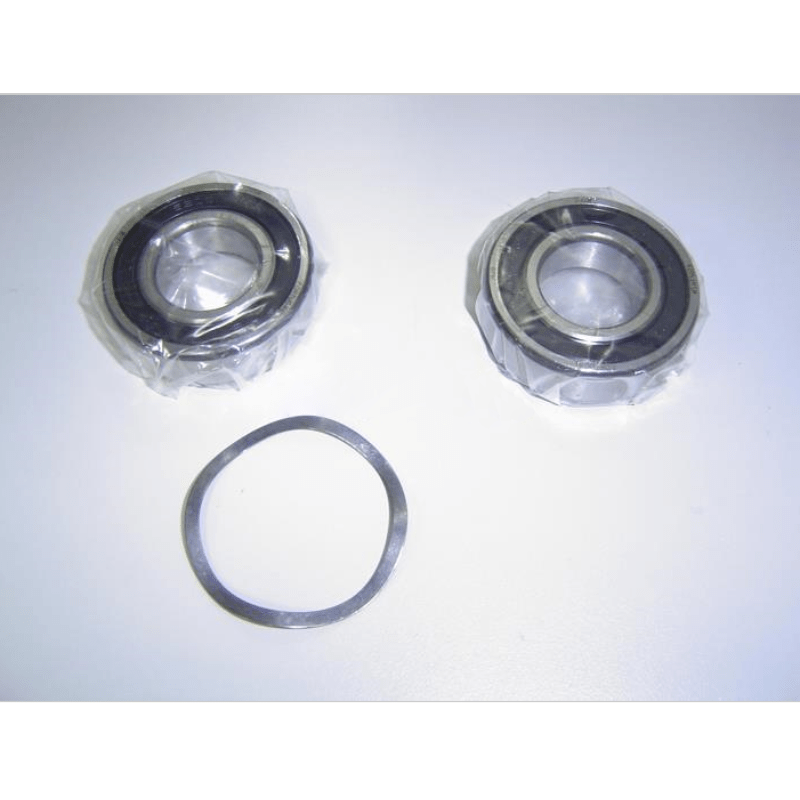

23 - ROLAMENTO MOTOR 1,5 HP - 3 HP |
|
|
|
23 - CONJUNTO ROLAMENTO 6205 2RS 3.5HP |
|
|
|
24 - TAMPA MOTOR TRASEIRA C.71 |
|
|
|
24 - TAMPA MOTOR TRASEIRA C.80 |
|
|
|
24 - TAMPA MOTOR TRASEIRA C.90 |
|
|
|
25 - GEBLÄSE-DÄMPFER-SET ((1/2 HP) 230 V II - (3/4 HP) 230 V II - (1 HP) 230 V II - (1 HP) 230/400 V III) |
|
|
|
25 - KLOPFER-DÄMPFER-SET ((1,5 PS) 230 V II - (1,5 PS) 230/400 V III - (2 PS) 230 V II - (2 PS) 230/400 V III - (3 PS) 230/400 V III) |
|
|
|
25 - LÜFTERHAUBE (3 STK) 230 V II |
|
|
|

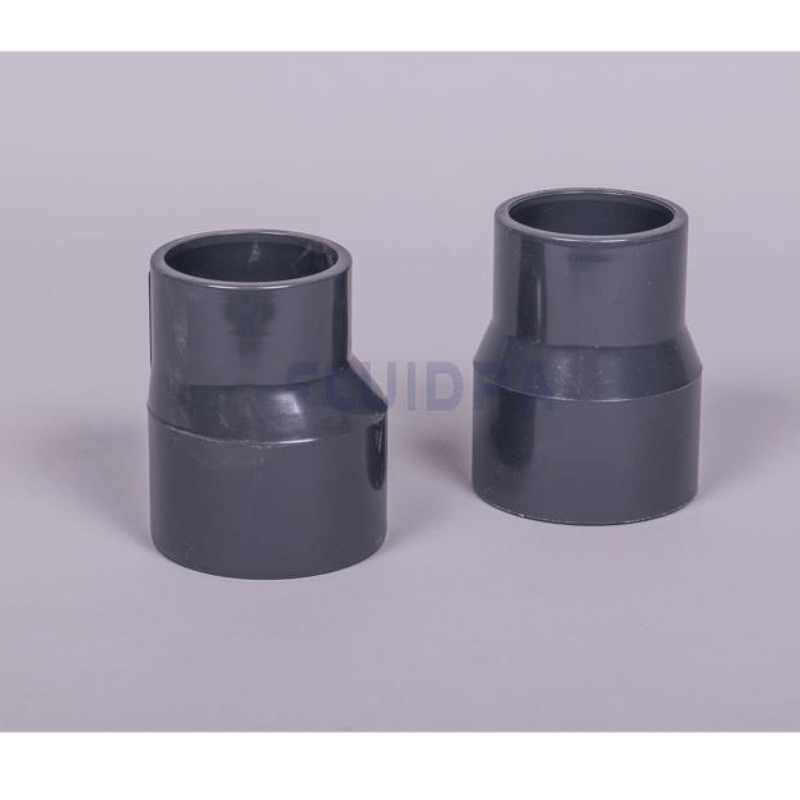

26 - 3-PS-VERSCHRAUBUNGEN |
|
|
|
27 - MOTOR ½ CV II |
|
|
|
27 - MOTOR 1 CV III |
|
|
|
27 - MOTOR 1.5 CV II |
|
|
|
27 - MOTOR 2 CV II |
|
|
|
27 - MOTOR 2 CV III |
|
|
|
27 - MOTOR 3 CV II |
|
|
