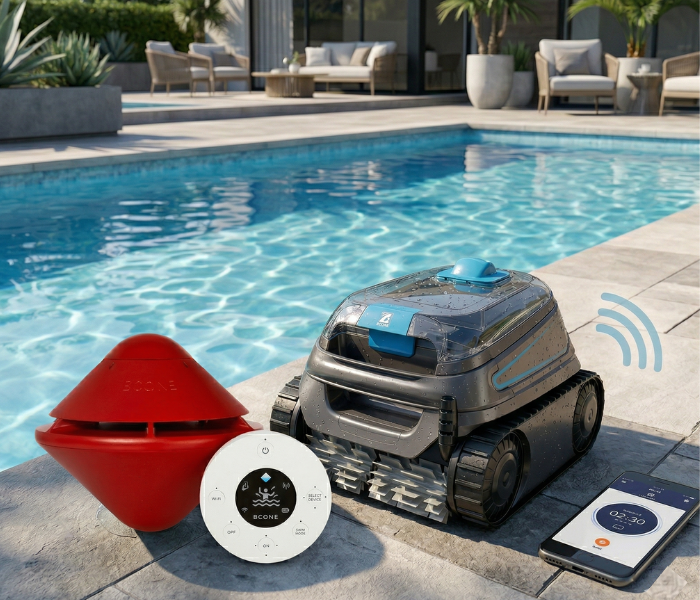

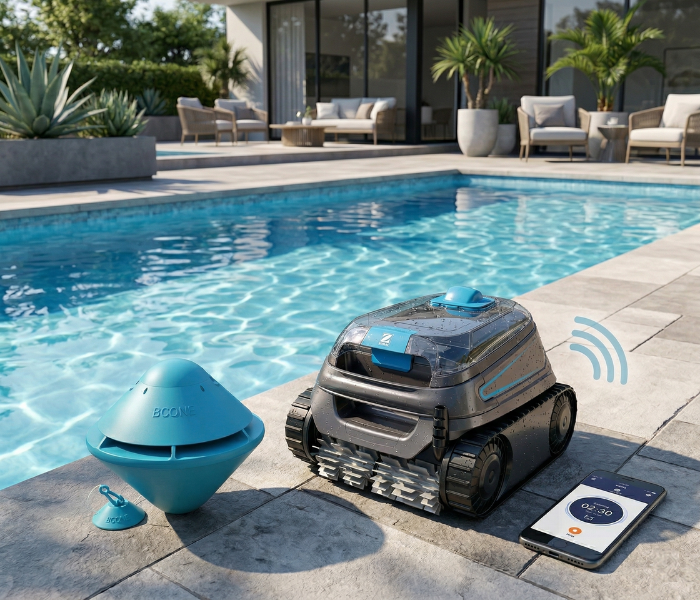

This kit includes:

• 1 × ZODIAC CNX 30 robot vacuum
• 1 × BCone Pool Alarm (Solo version or Bcone System)
• Factory-included accessories

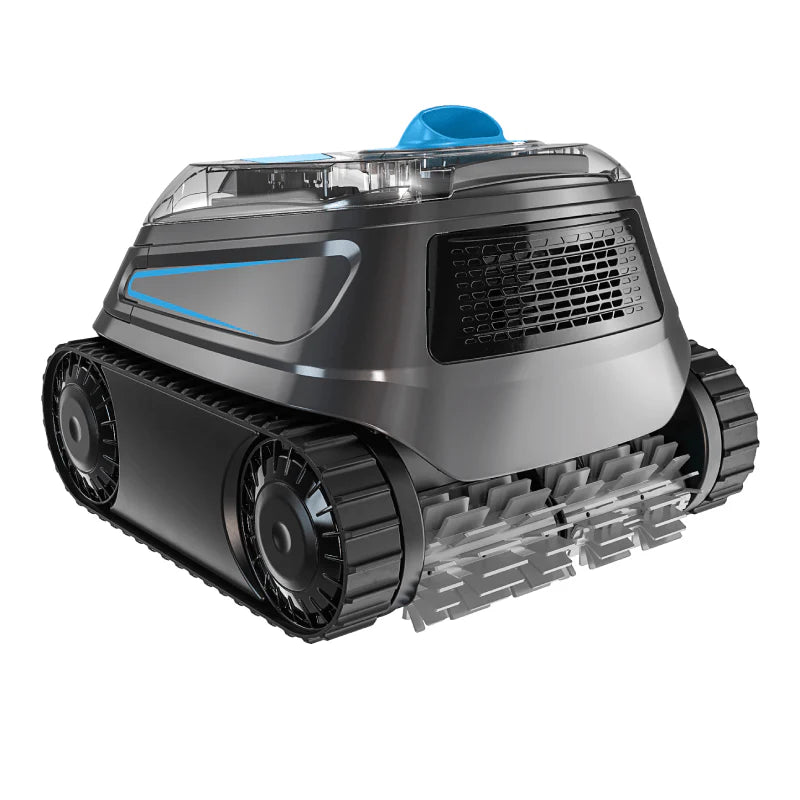

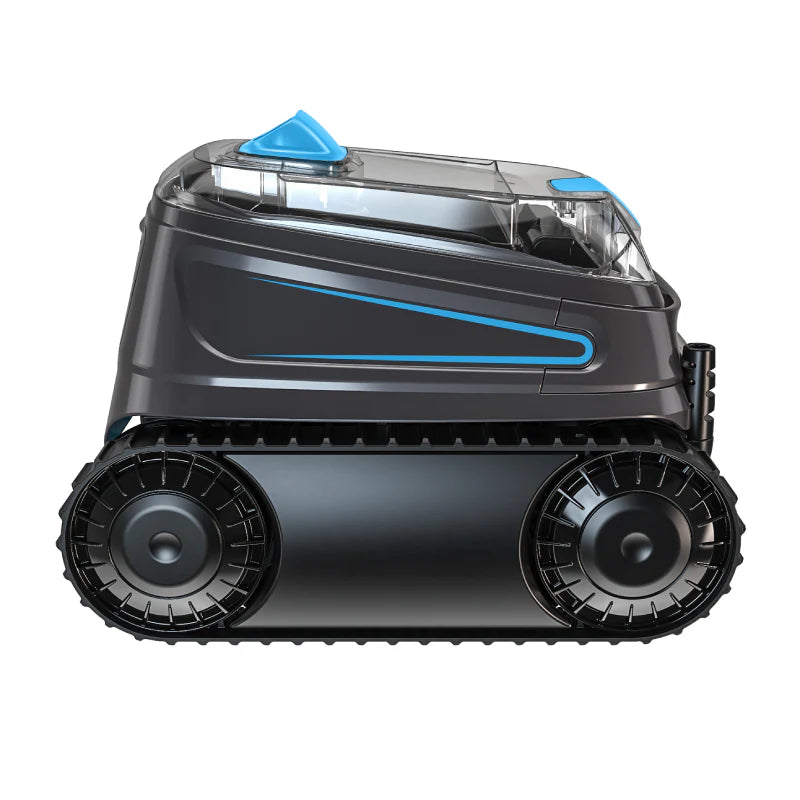

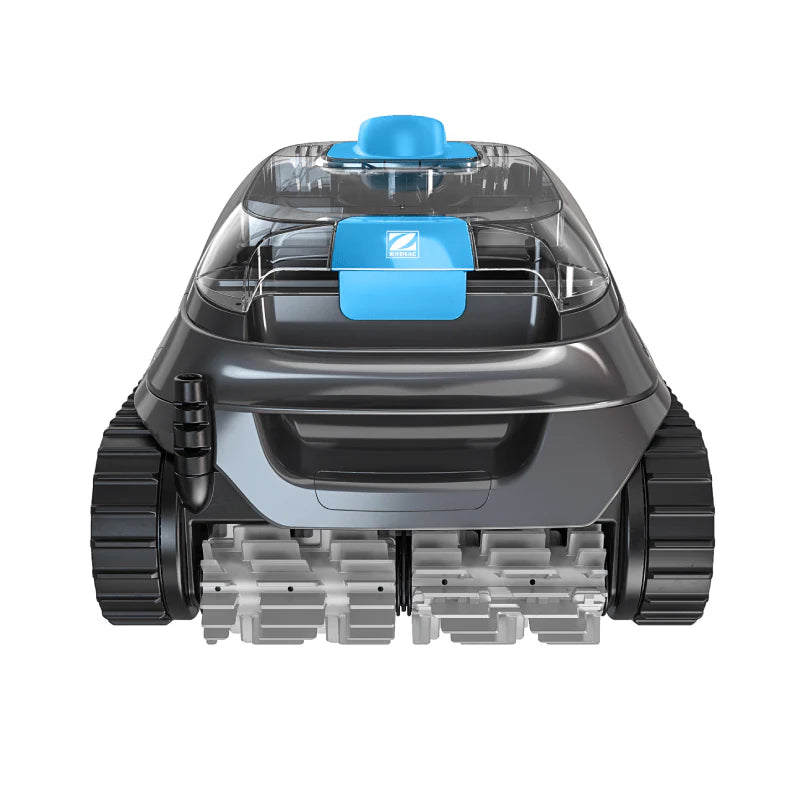

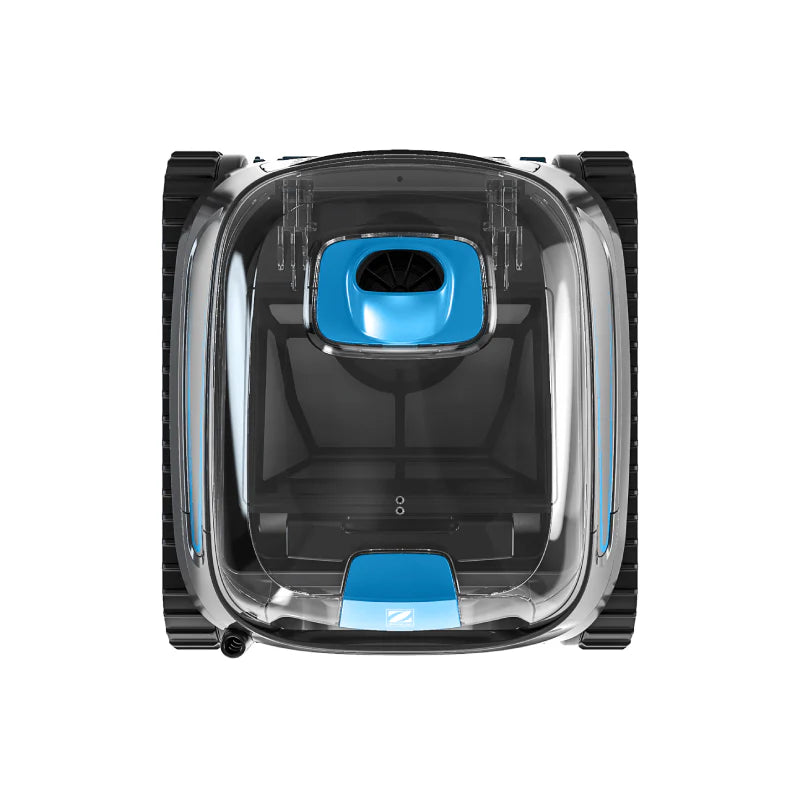

ZODIAC CNX 30 iQ Electric and Automatic Pool Cleaner Robot

The CNX 30 iQ robot ensures perfect large-scale cleaning. Its patented cyclonic suction is powerful and long-lasting. Front and rear spiral brushes and progressive dual-level filtration allow more efficient debris collection, including the finest particles. With CNX, your pool stays spotless all year round.

Integrated agility

With its built-in smart sensors and exclusive design, the CNX 30 iQ offers excellent pool coverage and unlimited agility. It works perfectly in all pool shapes and all types of surfaces.

User comfort

Thanks to the iAquaLink™ app, you can access your CNX 30 iQ robot remotely via smartphone. Cleaning progress can be monitored at any time. Automatic updates ensure continuous improvement. The top-access backlit filter and transparent window provide daily comfort.

CYCLONIC SUCTION

The patented cyclonic suction keeps debris suspended inside the filter for long-lasting performance. Its pump motor and large cartridge filter (4L) ensure excellent suction capacity.

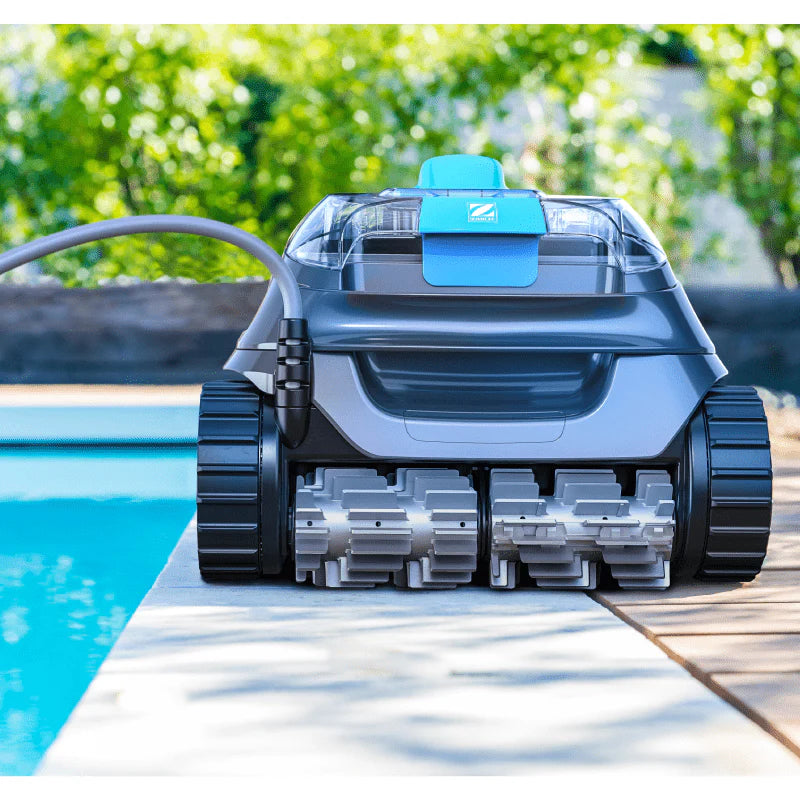

SPIRAL BRUSHES

Thanks to front and rear spiral brushes, the CNX 30 iQ cleans more efficiently without pushing debris forward.

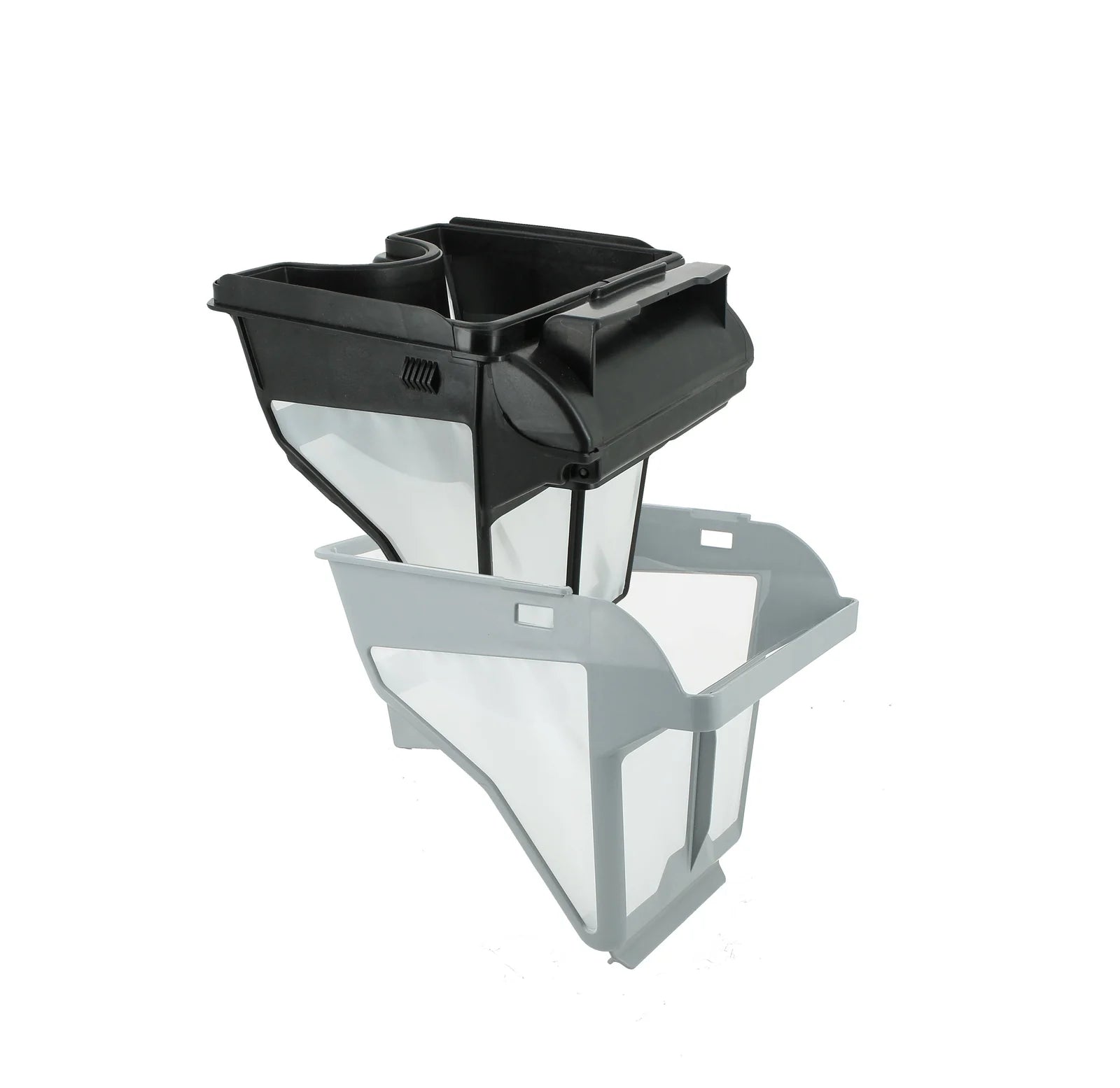

PROGRESSIVE DUAL-LEVEL FILTRATION

Its 150/60 µ dual-level progressive filtration captures debris efficiently, even the smallest particles. The coarse filter can be used alone at the beginning of the season for pre-cleaning.

INTEGRATED AGILITY

Equipped with built-in sensors (gyroscope and accelerometer), the CNX 30 iQ detects walls, climbs obstacles, and avoids cable tangling to ensure full coverage of pools up to 12 x 6 m.

WALL DETECTION

The accelerometer detects walls to avoid tilting at the base and stirring up debris.

IAQUALINK APP

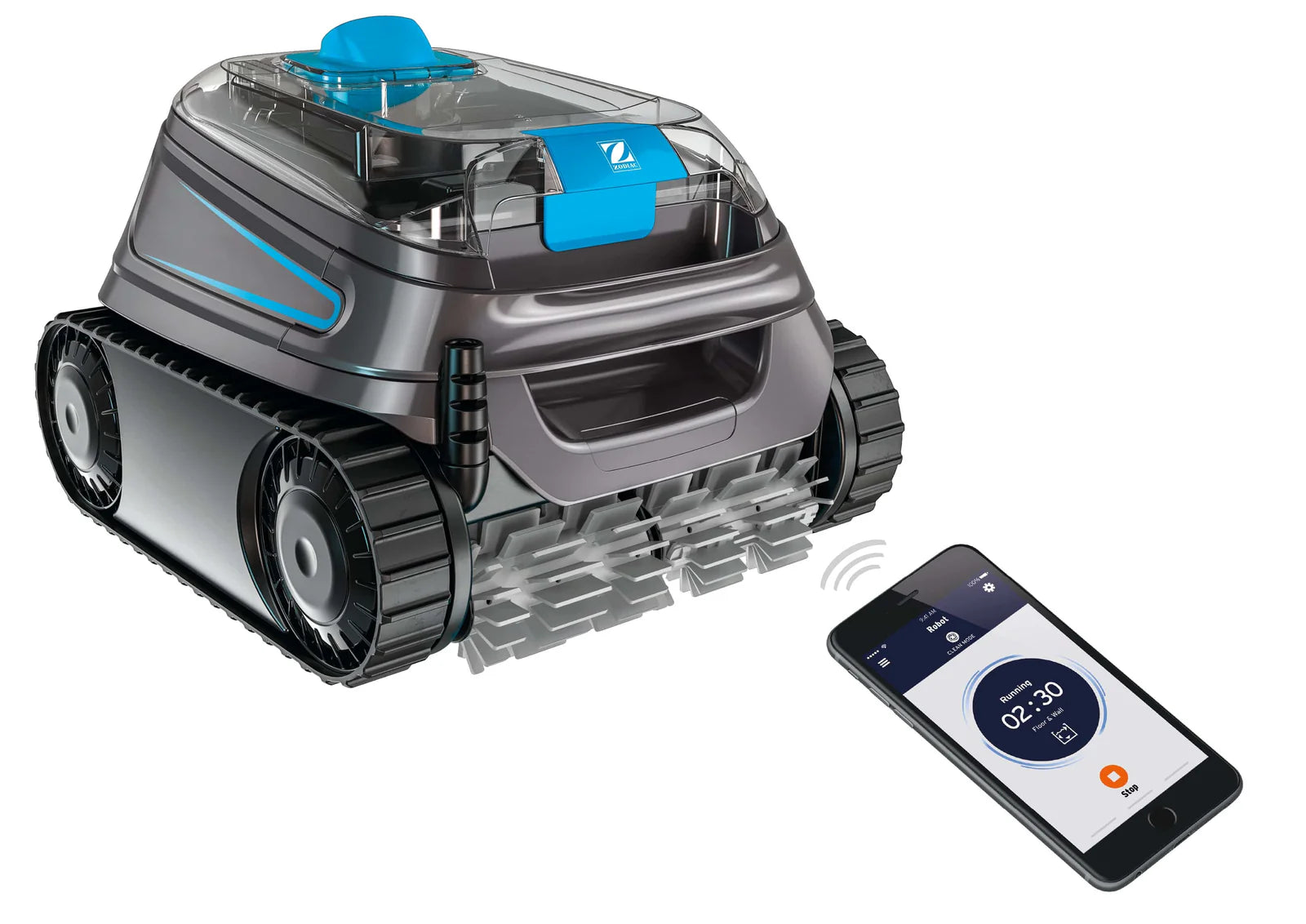

Control your CNX 30 iQ robot remotely via the iAquaLink app over WiFi: start cycles, select cleaning modes, and track progress.

TRANSPARENT WINDOW AND BACKLIT FILTER

This model features a transparent window and backlit filter for better debris visibility.

EASY USE

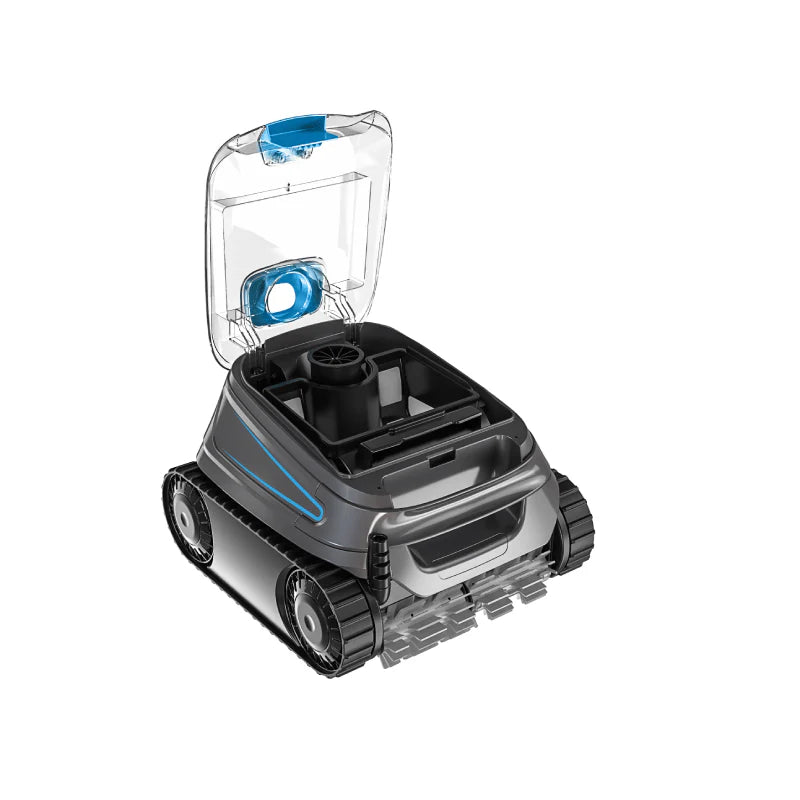

Top access allows the filter to be emptied without contact with debris.

QUICK WATER RELEASE

Exiting the pool is easier thanks to a rear grid that drains water quickly, making the robot lighter.

Technical sheet

Pool compatibility

• Pool types: In-ground private pools and above-ground pools with rigid walls
• Shapes: Rectangular, oval, freeform
• Bottom types: Flat, gentle slope, compound slope, diamond point
• Pool size: up to 12 x 6 m

Description

• Cleaning zones: Bottom / walls / waterline
• Cycles: Bottom only 1h30 / Bottom + walls + waterline 2h30
• Power source: Autonomous, 230 V upstream transformer connection
• Movement: Pre-programmed
• Traction system: Tracks
• Transmission: Gears
• Brushes front & rear: Yes
• Lift system: No
• Transparent window: Yes
• Full filter indicator: Yes
• Remote control: No
• Safety: Beach system, out-of-water safety, electronic motor protection
• Filtration system: Rigid top-access filter

Technical specifications CNX 30 iQ

Included accessories

• Control unit base
• Control box
• Fine debris filter 60/150 µ
• App

Optional accessories

• 100 µ filter
• 200 µ filter
• Protective cover

ROBOT COMPARISON

DOCUMENTS

Bcone System

The BCone pool alarm is the most intelligent and versatile pool safety device on the market. Based on advanced sensors and software algorithms, BCone provides maximum protection for children and pets with minimal effort from the user.

Highly sophisticated yet easy to use, a simple interface allows you to install the system and get it up and running in just a few minutes.

Connectivity - Connects to Alexa. Smartphone app connectivity to fully control the system, wherever you are.


Performance - Advanced algorithm prevents false alerts. Powerfully loud alarm in both pool and domestic units. Quick and easy installation, all HW included.


Compatibility - Works in all types of pools, spas and garden ponds. Up to 4 pool units can be connected to one home unit, for large pools or multiple pools/spas. Portable so you can take it with you on holiday. NSF certified according to ASTM-F2208.


Reliability - 3-year manufacturer's warranty. Made from highly durable materials for maximum reliability. IP68 waterproof certification.

The BCone offers an intelligent feature called Swim Mode. When Swim Mode is activated, the alarm does not sound - to allow swimming. If no movement is detected for several minutes, the system reactivates automatically and, in the event of a fall into the pool, a siren sounds.



Bcone Solo

Solo is a stand-alone pool alarm. It has no domestic unit and is very simple to install.


Solo has the same advanced pool entry detection algorithm as the BCone system, and the same reliable design and materials. Like BCone, Solo has a full 3-year guarantee.


Solo comes with a Bluetooth app that can operate within a 30 metre radius. The user-friendly app makes it easy to set up and control.
The app is not used for notifications, so if you need to be notified when you're not at home, check the BCone system.



Solo's battery lasts up to 18 months and uses two AA batteries.

Note: Both products are recommended for 12x6 pools. For larger pools, it is recommended to purchase more than one Bcone.
